Revolutionize your workflow with our automatic quick-change worktable

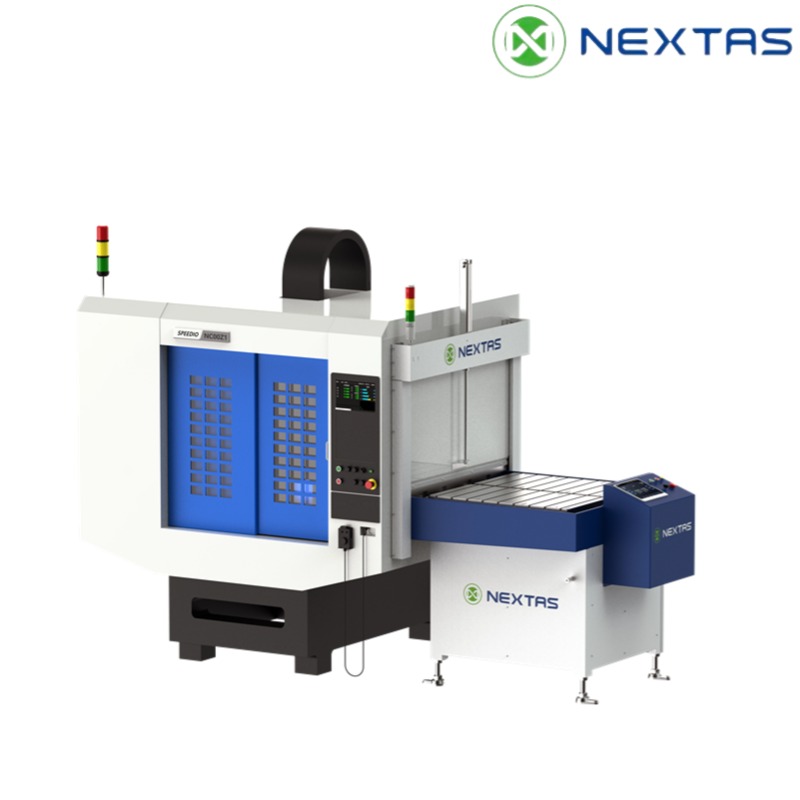

What is the Off-Machine Automatic Quick-Change Worktable?

The Off-Machine Automatic Quick-Change Worktable is an advanced modular clamping system that allows for rapid workpiece changes outside the CNC machine (off-machine setup). By preparing and pre-clamping the next workpiece while the current one is still being processed, this system eliminates traditional bottlenecks in CNC operations, ensuring near-continuous production.

How Does It Work?

1. Off-Machine Preparation: Operators load and secure new workpieces onto a secondary worktable outside the CNC machine, using precision fixtures or pallets.

2. Automated Switching: Once machining completes, the CNC machine automatically exchanges the finished worktable with the pre-loaded one in seconds via a robotic arm, conveyor, or hydraulic/pneumatic mechanism.

3. Seamless Integration: The system syncs with the CNC controller, ensuring zero misalignment and immediate resumption of machining.

After using the quick-change worktable:

By decoupling setup time from machine runtime, the worktable enables:

• Batch Processing: Multiple worktables can be prepped in advance for high-mix, low-volume production.

• Lights-Out Manufacturing: Unattended operation becomes feasible, maximizing machine utilization overnight.

• Reduced Human Error: Automated clamping minimizes manual intervention, improving consistency.

Key Features：

✔ High Precision: Rigid construction and repeatability within microns.
✔ Modular Design: Compatible with various CNC machines (mills, lathes, EDM).
✔ Quick-Release Mechanism: Tool-free clamping for fast swaps (<10 seconds).
✔ Smart Connectivity: IoT-enabled models provide real-time monitoring.

Advantages Over Traditional Methods:

• 80%+ Reduction in Setup Time: No more manual repositioning or recalibration.

• 30% Higher Throughput: Machines spend more time cutting, not waiting.

• Lower Labor Costs: One operator can manage multiple machines.

• Enhanced Flexibility: Ideal for SMEs and large-scale factories alike.

Cost Savings & Efficiency Gains:

• ROI in Months: Reduced idle time pays for the system quickly.

• Less Scrap: Accurate clamping minimizes rework.

• Energy Efficiency: Optimized cycles cut power waste.

"Industry 4.0 demands smarter, faster solutions.Our Off-Machine Quick-Change Worktable isn’t just an upgrade—it’s a transformational leap. We invite manufacturers to contact us for a demo or customized solution."
